RS232C Optical ModemRS232C⇔Optical signal⇔RS232C
GPNET opt-23AⅡ/opt-23A+
・Capable of multiplexed communication of 4 transmitting and 4 receiving RS-232C
signals using optical fibers.
・Employs a high reliability SMT base without using an electrolysis condenser.
・Standard type: opt23AⅡ
・Ceramic Package: opt23A+
・A fail-safe function prevents noise when the power is turned ON-OFF.
・With its noise-damping shield case, it conforms to FCC and VCC standards.
・With 3 types of error checks and consecutive transmission ordering format,
high quality transmission is possible.
・Communication distances are:
APF= 0.2m ~ 50m
HPCF= 0.2m ~ 1km
PCF=0.2m ~ 1.3km
・Communication capabilities are: Max. 64Kbps (4 trans., 4 rec. duplex)
GPNET opt-23FC/opt-23SMA/opt-23ST
・Compatible with the GI quartz fiber
・Capable of multiplexed communication of 4 transmitting and 4 receiving RS-232C signals
using optical fibers.
・Employs a high reliability SMT base without using an electrolysis condenser.
・A fail-safe function prevents noise when the power is turned ON-OFF.
・With its noise-damping shield case, it conforms to FCC and VCC standards.
・With 3 types of error checks and consecutive transmission ordering format,
it gives high quality transmission.
・Communication distances is 0.2m ~ 1.5km
・Communication capabilities are: Max. 64Kbps (4 trans., 4 rec. duplex)

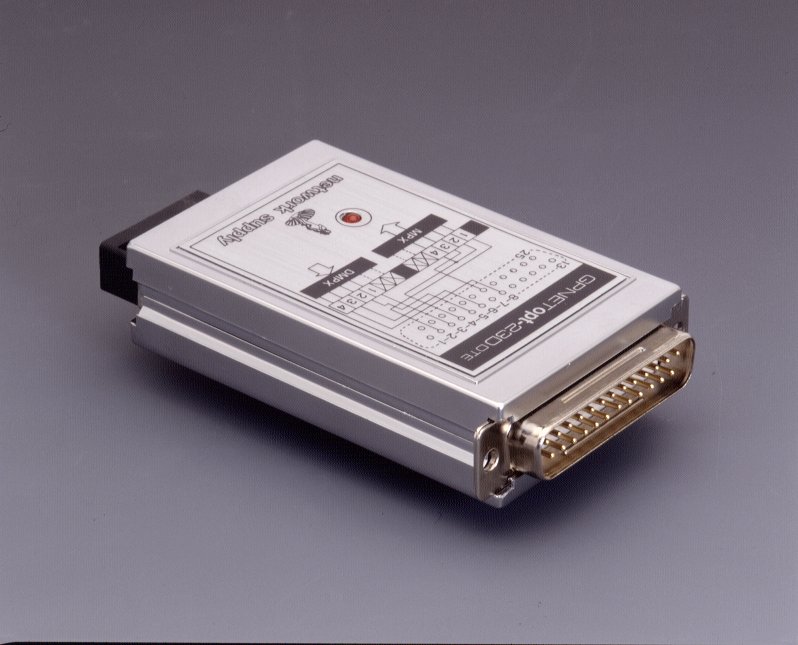

GPNET opt23D
・Compatible with the Dupont DL connector
・Capable of multiplexed communication of 4 transmitting and 4 receiving RS-232C signals
using optical fibers.
・Employs a high reliability SMT base without using an electrolysis condenser.
・A fail-safe function prevents noise when the power is turned ON-OFF.
・With its noise-damping shield case, it conforms to FCC and VCC standards.
・With 3 types of error checks and consecutive transmission ordering format, high quality transmission is possible.
・Communication distances is 0.15m ~ 1km
・Communication capabilities are: Max. 64Kbps (4 trans., 4 rec. duplex)
GPNET opt-23SⅡ/opt-23S-FC/opt-23S-SMA/opt-23S-ST
・Low-cost modem capable of optical communication of 1 transmitting and 1 receiving
RS-232C signals.
・With its noise-damping shield case, it conforms to FCC and VCC standards.
・Compatibility with FC / SMA / ST standard connectors is possible.
・Communication distances are: HPCF= 0.2m ~ 1km, PCF= 0.2m ~ 1.3km
・Communication capabilities are: Max. 64Kbps (1 trans., 1 rec. duplex)
GPNET opt23BⅡ
・Compatible with single-mode quartz fiber
・Employs a high reliability SMT base without using an electrolysis condenser.
・A fail-safe function prevents noise when the power is turned ON-OFF.
・With its noise-damping shield case, it conforms to FCC and VCC standards.
・With 3 types of error checks and consecutive transmission ordering format,
which provide high quality.
・Communication distances is 0.2m ~ 10km
・Communication capabilities are: Max. 64Kbps (3 trans., 3 rec. duplex)
RS232C光モデム一覧表
| signal lines | Optical connector fiber |
Equivalent connection | product name |
|---|---|---|---|
| 4 transmisson lines & 4 receive lines |
JISF07 （TOCP200） APF PCF HPCF |
DTE－DCE （straght） |
GPNET opt-23AⅡDTE－DCE |
| GPNET opt-23A+ DTE-DCE | |||
| DTE-DTE (cross） |
GPNET opt-23AⅡ DTE-DTE | ||
| GPNET opt-23A+ DTE-DTE | |||
| JIS F01 FC GI quartz 50/125 62.5/125 |
DTE－DCE （straght） |
GPNET opt-23FC DTE－DCE | |
| DTE-DTE (cross） |
GPNET opt-23FC DTE－DTE | ||
| MIL SMA GI quartz 50/125 62.5/125 |
DTE－DCE （straght） |
GPNET opt-23SMA DTE－DCE | |
| DTE-DTE (cross） |
GPNET opt-23SMA DTE－DTE | ||
| MIL ST GI quartz 50/125 62.5/125 |
DTE－DCE （straght） |
GPNET opt-23ST DTE－DCE | |
| DTE-DTE (cross） |
GPNET opt-23ST DTE－DTE | ||
| JISF08 DL Large-diameter quartz 185/250 |
DTE－DCE （straght） |
GPNET opt-23D DTE－DCE | |
| DTE-DTE (cross） |
GPNET opt-23D DTE－DTE | ||
| 3 transmisson lines & 3 receive lines |
JISF04 SC single-mode quartz 10/125 |
DTE－DCE （straght） |
GPNET opt-23BⅡ DTE－DCE |
| DTE-DTE (cross） |
GPNET opt-23BⅡ DTE－DTE | ||
| 1 transmisson line & 1 receive line |
JISF07 （TOCP200） APF PCF HPCF |
DTE－DCE （straght） |
GPNET opt-23SⅡ DTE－DCE |
| DTE-DTE (cross） |
GPNET opt-23SⅡ DTE－DTE | ||
| JIS F01 FC GI quartz 50/125 62.5/125 |
DTE－DCE （straght） |
GPNET opt-23S-FC DTE－DCE | |
| DTE-DTE (cross） |
GPNET opt-23S-FC DTE－DTE | ||
| MIL SMA GI quartz 50/125 62.5/125 |
DTE－DCE （straght） |
GPNET opt-23S-SMA DTE－DCE | |
| DTE-DTE (cross） |
GPNET opt-23S-SMA DTE－DTE | ||
| MIL ST GI quartz 50/125 62.5/125 |
DTE－DCE （straght） |
GPNET opt-23S-ST DTE－DCE | |
| DTE-DTE (cross） |
GPNET opt-23S-ST DTE－DTE |
